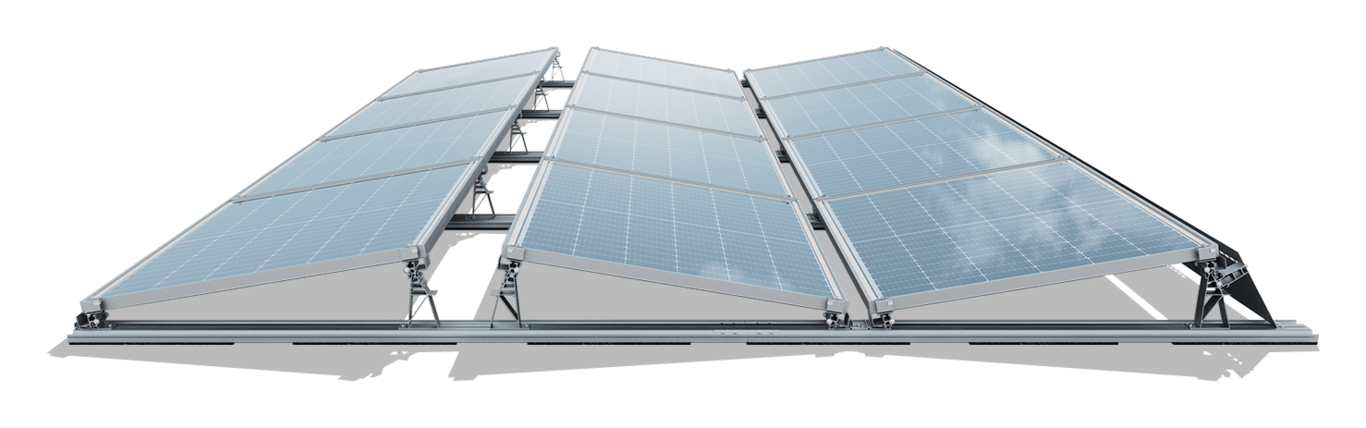

IBC AeroFix G3

Maximum flexibility on flat roofs

The further development of our aerodynamic flat roof mounting system now offers even more options for customised and economical PV module installation on roofs - and all without penetrating the roof.

Module sizes
Tilt joint
Base rails
Cable ducts
Setup variants

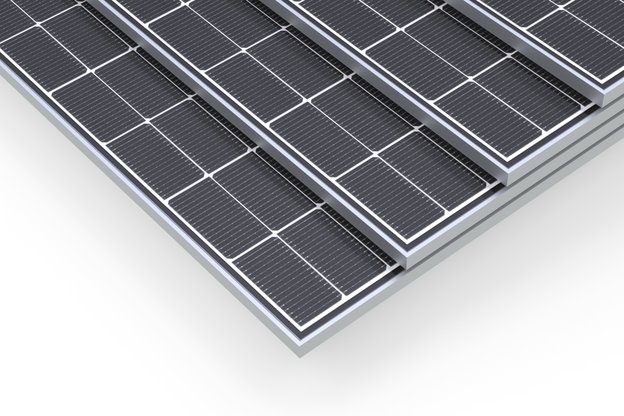

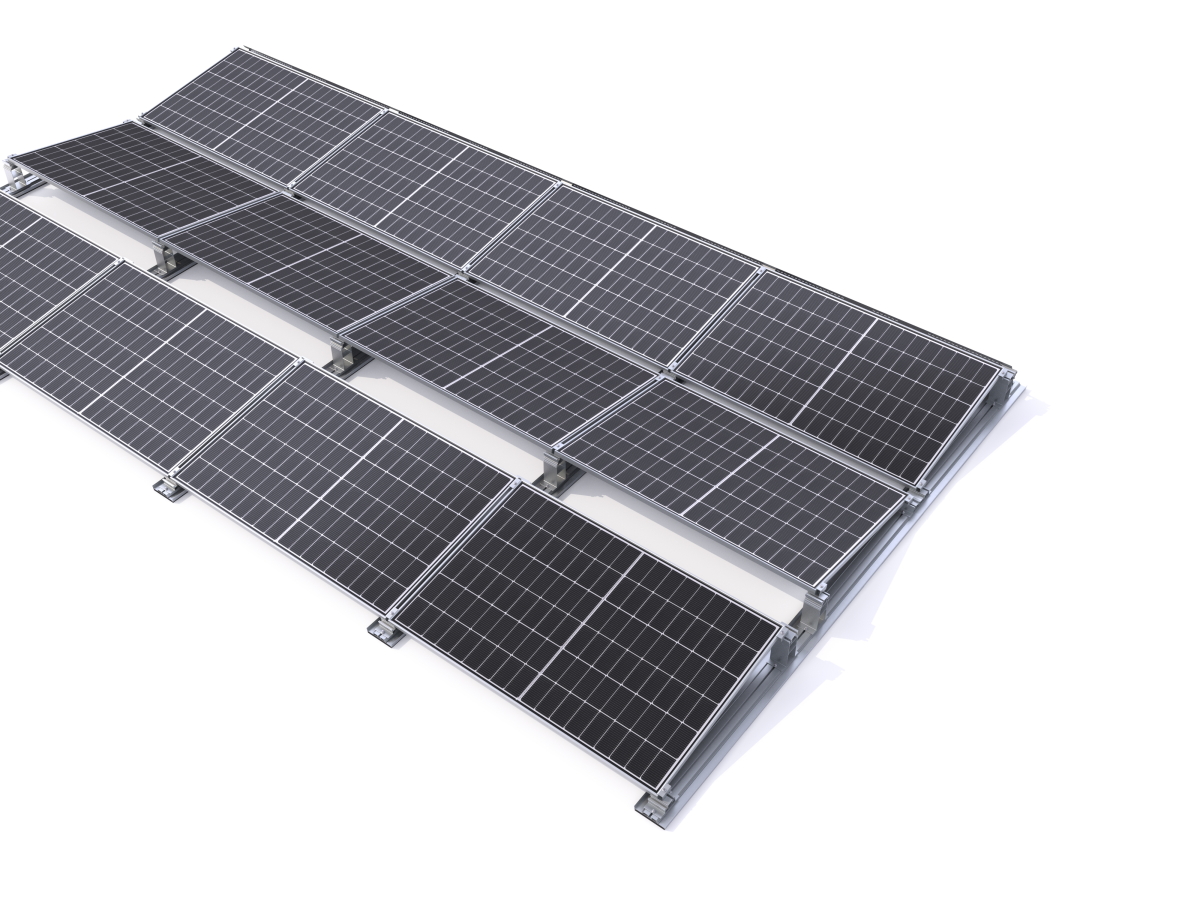

Module sizes

From small to large

The IBC AeroFix G3 remains flexible – even with large modules.

PV modules are becoming increasingly large. For this reason, mounting systems must be flexible and adaptable to the respective module type. Modules with lengths of 1500 to 2100 mm and widths of 980 to 1150 mm can be mounted on the AeroFix G3.

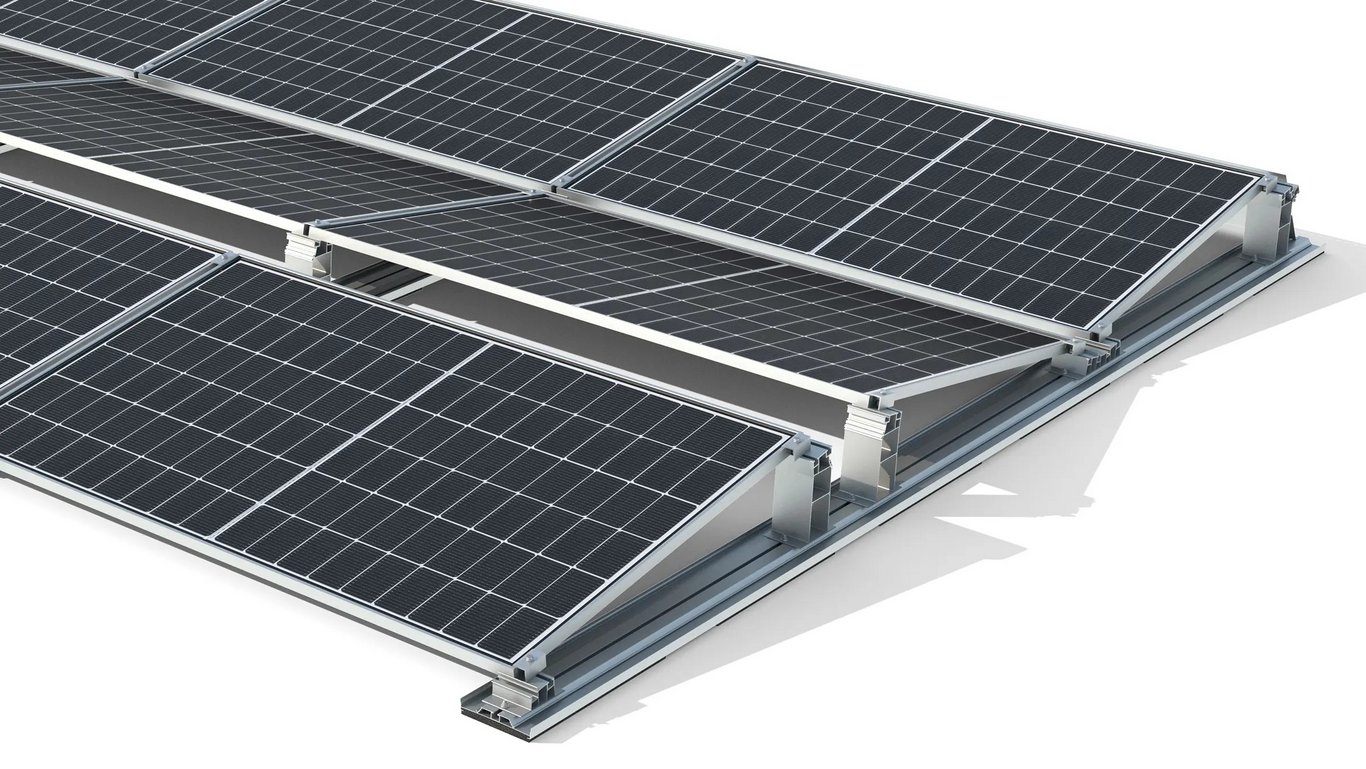

Tilt joint

No tension – no damage

The ingenious tilt joint combines quality and safety.

Thanks to an integrated tilt joint in the AeroFix mounting support, the modules lie on the mounting system without mechanical tension. The key advantage: No cell damage caused by tension on the module – and no resulting power losses.

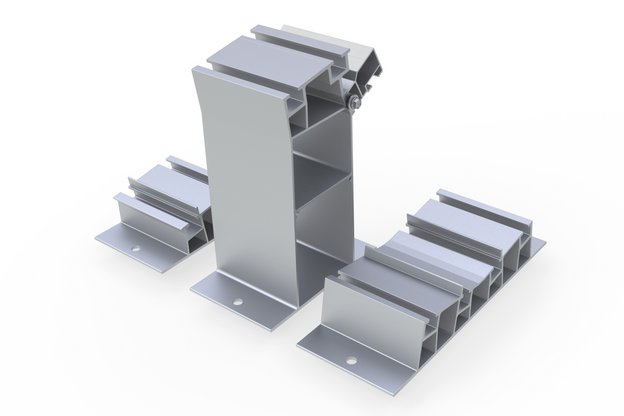

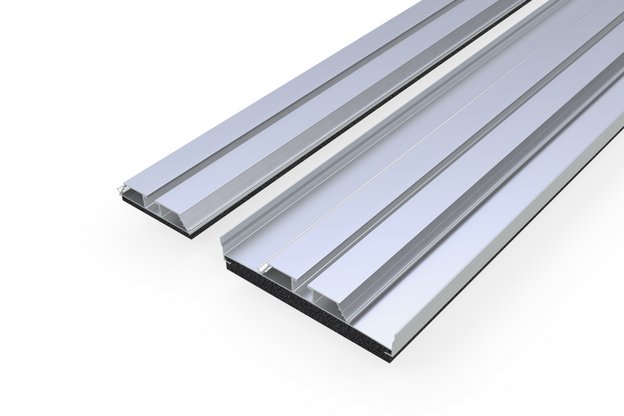

Base rails

Wide and narrow in combination

The combination option ensures both flexibility and cost efficiency.

With the IBC AeroFix G3, wide and narrow base rails can be combined in the same system. This means that more stable roof areas or lower ballasted modules can be fitted with the more cost-effective, narrow rail. This not only ensures maximum flexibility, but also reduces material expenditure as well as the total cost of the system. At the same time, the roof installation is secure.

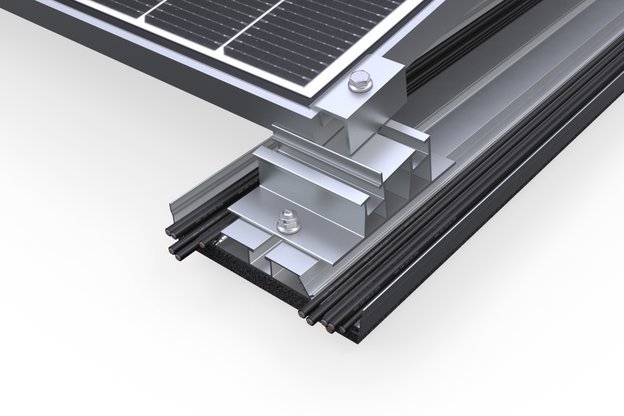

Cable ducts

Practical integration

Pre-installed cable ducts save time and make installation convenient.

For maximum convenience and cost efficiency, the AeroFix G3 mounting system features wide base profiles with integrated cable ducts that can accommodate up to 28 x 6 mm² cables. This not only makes installation easier, but also saves time, costs and labour. The top supports have an extra shelf to attach a small cable duct or cable clips.

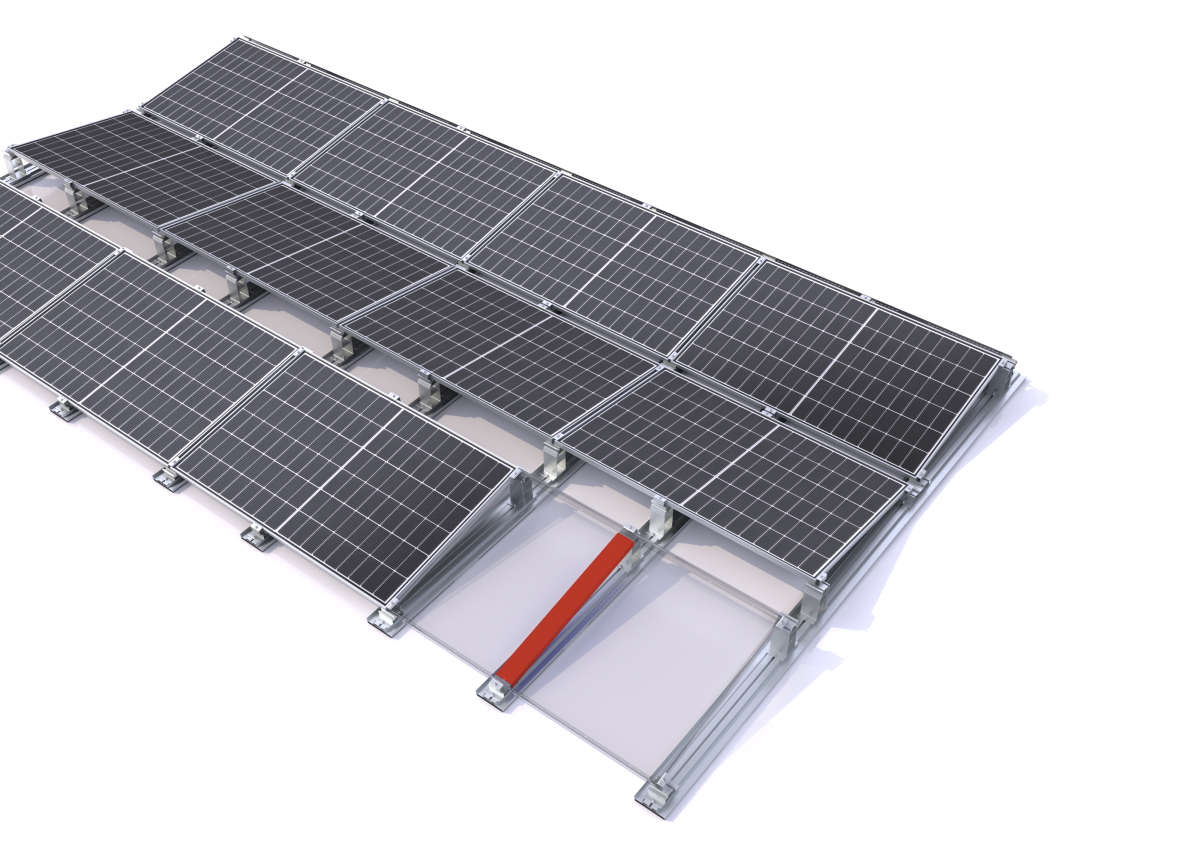

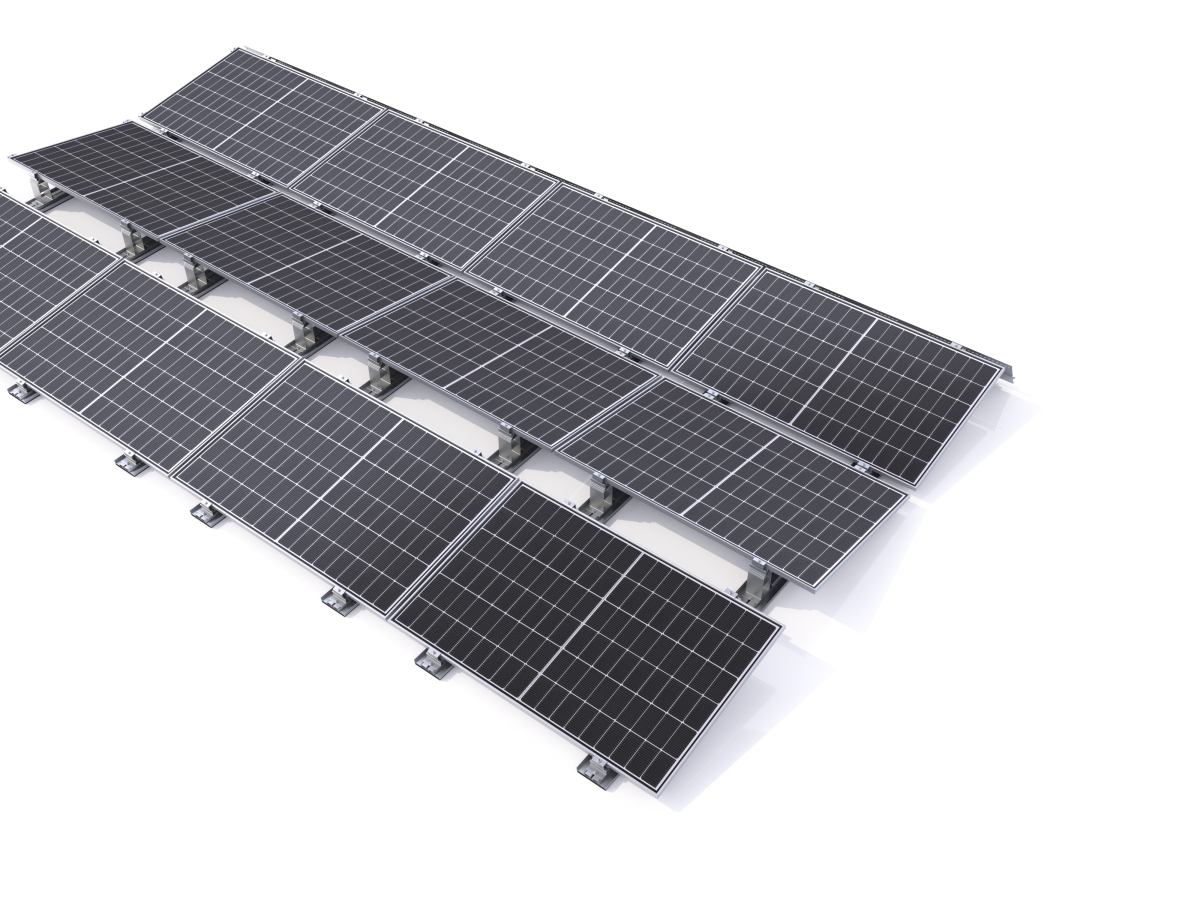

Setup variants

Horizontal or vertical

3 x 2 variants are suitable for any roof.

Six different installation variants make the AeroFix G3 as flexible as possible and guarantee perfect adaptability for any roof. The modules can be mounted not only horizontally, but also vertically. The elevation of 8, 10 or 15 degrees is possible, in a south or east-west direction.

Technical highlights.

The aerodynamic design, optimised in the wind tunnel, is "pressed" onto the roof by the wind and therefore does not need to be bolted to the roof. The large number of installation variants, sophisticated technical highlights and the option of combining wide and narrow floor rails make the system special and ensure a high degree of flexibility and cost-effectiveness.

High-quality materials.

The IBC AeroFix G3 uses only high-quality materials, such as aluminium and stainless steel, and the components are perfectly matched to each other. The system therefore offers maximum stability and durability for all types of flat roofs, whether they be foil, bitumen, gravel, concrete or even green roofs.

The optimal solution for flat roofs.

Fast.

Ready in a few simple steps thanks to pre-assembled individual parts.

Economical.

Pre-assembled building protection mats and integrated cable ducts as well as optional narrow floor rails save time, costs and effort.

Modular.

Optimised solutions for almost all flat roof shapes and roof coverings thanks to the modular principle.

Safe.

Aerodynamically optimised for extreme stability, even in storms.

Reliable.

Extensive quality tests in the SUNLAB test laboratory prove optimum product quality.

Roof ideal.

No roof damage thanks to large-area load distribution via wide base rails and roof-penetration-free installation. For all plastic sheeting, bitumen, gravel, green and concrete roofs.

High quality.

Long service life thanks to the use of optimised materials such as aluminium and stainless steel.

Guaranteed.

Maximum safety with a 15-year combined warranty.

The IBC AeroFix G3 is the optimum solution for all applications requiring maximum quality, economy and flexibility.

With our expert knowledge and the continuous optimisation of our products, we guarantee high-quality energy solutions. Experience all the highlights of the IBC AeroFix G3 once again in our 3D video and see how you really can rely on mounting systems from IBC SOLAR.

We need your consent to load the YouTube service!

Quick planning with the PV Manager.

With our PV Manager software, you benefit in many ways when planning your systems: all our mounting systems are already integrated into the programme. Thanks to automatic updates, the software is always up to date - including clear graphics and well-organised documents. Your entire system planning ends in a parts list that you can transfer directly to our online shop. This means you can get the materials you need in no time at all.


Find out more

Only at IBC SOLAR: The combination warranty.

Whether material weakness or loss of performance - if one of these applies, you don't want discussions, you want a good and quick solution. You will find this with the new 15 year combined warranty on IBC SOLAR mounting systems and IBC SOLAR modules when purchased in combination.

This means that your customers receive a warranty which is 5 years longer than if they purchased the individual components separately. We are the direct contact and guarantor in one and ensure an uncomplicated settlement in the event of a claim.


Learn more

Get to know our other systems from the mounting sector.

AeroFix Latch

Fall protection

Specially developed for maintenance work on flat roofs where there is a risk of falling, AeroFix Latch is DEKRA-certified and has an EU type examination certificate. The special feature of this system is its direct connection to the module field.

AeroFlat

Inclined flat roof

The roof-parallel, aerodynamic mounting system for commercial roofs is specially designed for pitched bitumen and foil roofs and can be used up to a maximum roof pitch of 30 degrees and a roof height of up to 35 metres.
